Adding integrations to a project

So we’ve created a project, reviewed the starter code, but how do we start adding resources to our project?

When adding resources (called integrations by the .NET team) to the project there are usually two nuget packages per integration. One for the app host which configures the docker or podman image, adds health checks and telemetry, and another for the client or consumer of the resource.

Creating a PostgreSQL Integration

Lets take a look at adding a PostgreSQL database to our project. First we need to add the app host integration nuget package:

<ItemGroup>
  <PackageReference Include="Aspire.Hosting.AppHost" Version="8.2.2" />
  <PackageReference Include="Aspire.Hosting.PostgreSQL" Version="8.2.2" />
</ItemGroup>

In Program.cs add the following lines:

// Creates the postgres container
var todosdb = builder.AddPostgres(
        name: "todos",
        port: 5433
    )
    // Creates the database
    .AddDatabase("todosdb");

If you don’t specify the port a random port will be assigned, I prefer using a pre defined port so I can save connections in my IDE.

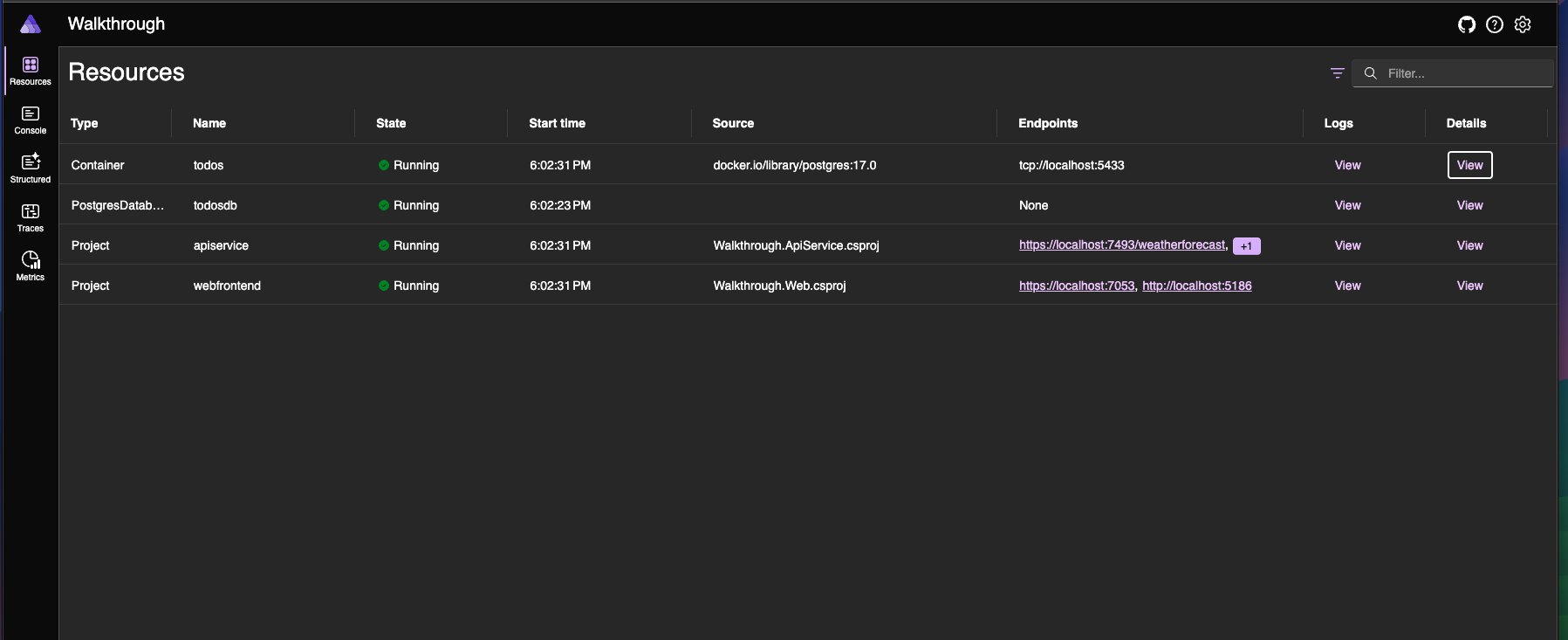

Now hit either F5 or dotnet run and you will see the following in the dashboard:

There is a row for both the container and the database. We can see that the container has Logs and Details that contain the credentials as well as container information.

Connecting a service to the database

For everyones favorite coding project we can quicly create a Todo restful API.

# create a new webapi project
dotnet new webapi -o Todo.Service && \
# add the service to the solution
dotnet sln add Todo.Service && \
# add the necessary references
cd Walkthrough.AppHost && dotnet add reference ../Todo.Service && \
cd ../Todo.Service && dotnet add reference ../Walkthrough.ServiceDefaults && \
cd ..

We’ll add a Models/Todo.cs entity.

namespace Todo.Service.Models;

public class Todo
{
    public int TodoId { get; set; }
    public string Title { get; set; } = null!;
    public bool IsComplete { get; set; }
    public DateTime? CompletedAt { get; set; }
    public DateTime DueDate { get; set; }
}

And create a new scaffolded API. In Rider follow the screenshots below:

add scaffold

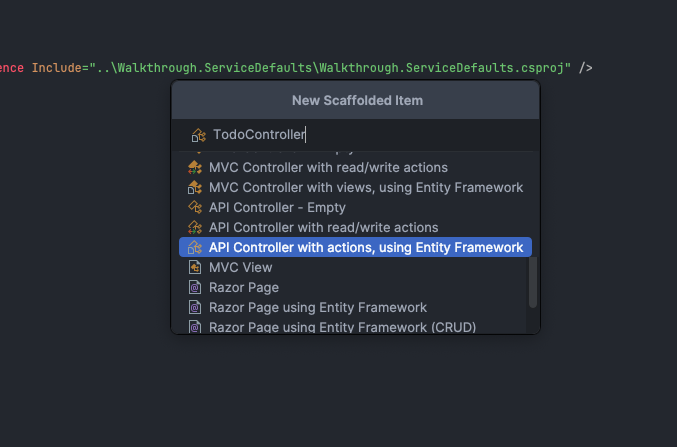

Select the API Controller with actions, using Entity Framework option, Entering in the name of the controller. scaffold item

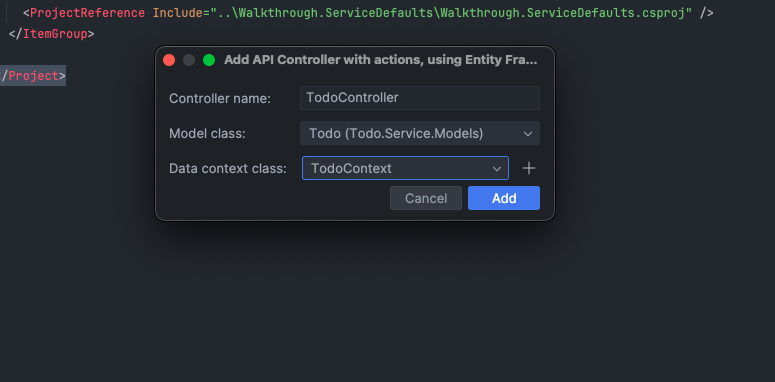

Click the plus icon and enter TodoContext. After you click Add Rider will install the necessary EF Core packages and scaffold our DbContext, APIs, and update the Program.cs builder.

scaffold form

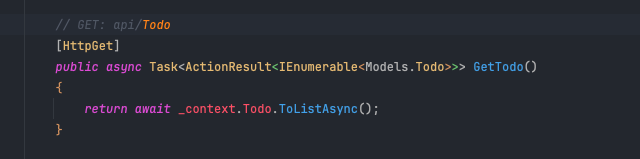

Lastly we’ll need to update the namespace for the Todo entity since there is a naming conflict. update model

We’ve scaffolded our service, now to connect our database to it.

In Walkthrough.AppHost/Program.cs we’ll add our service with a reference to the postgres database.

builder.AddProject<Projects.Todo_Service>("todoservice")
    .WithReference(todosdb);

Next add the Aspire.Npgsql.EntityFrameworkCore.PostgreSQL package to the Todo.Service.

<PackageReference Include="Aspire.Npgsql.EntityFrameworkCore.PostgreSQL" Version="8.2.2" />

Next update the Todo.Service/Program.cs to use the Aspire PG package.

builder.Services.AddDbContext<TodoContext>(options =>
    options.UseSqlite(builder.Configuration.GetConnectionString("TodoContext") ?? throw new InvalidOperationException("Connection string 'TodoContext' not found.")));
builder.AddNpgsqlDbContext<TodoContext>("todosdb");

Next update our Program.cs to use controllers and migrate our context when the application starts.

using Microsoft.EntityFrameworkCore;
using Microsoft.Extensions.DependencyInjection;

var builder = WebApplication.CreateBuilder(args);
builder.AddNpgsqlDbContext<TodoContext>(connectionName: "todosdb");

// Add services to the container.
// Learn more about configuring Swagger/OpenAPI at https://aka.ms/aspnetcore/swashbuckle
builder.Services.AddControllers();
builder.AddServiceDefaults(); // Aspire service defaults
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();

var app = builder.Build();

// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
    app.UseSwagger();
    app.UseSwaggerUI();

    using (var scope = app.Services.CreateScope())
    {
        await using var context = scope.ServiceProvider.GetRequiredService<TodoContext>();
        await context.Database.MigrateAsync();
    }
}


app.UseHttpsRedirection();

app.MapControllers();

Finally we need to add the migration to the service.

cd Todo.Service && dotnet ef migrations add InitialCreate

Now when we start our AppHost and click on the Todo.Service link we can start executing our endpoints.

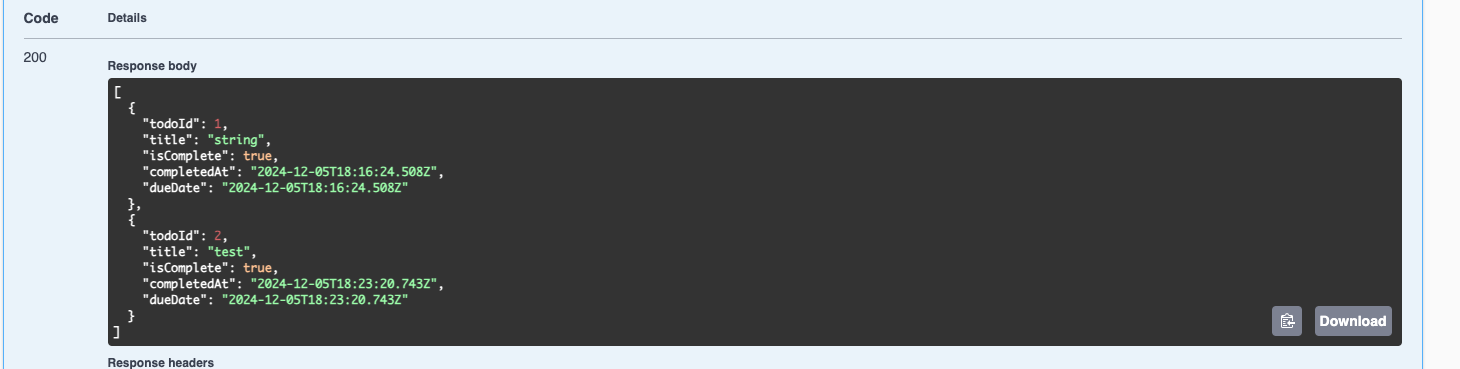

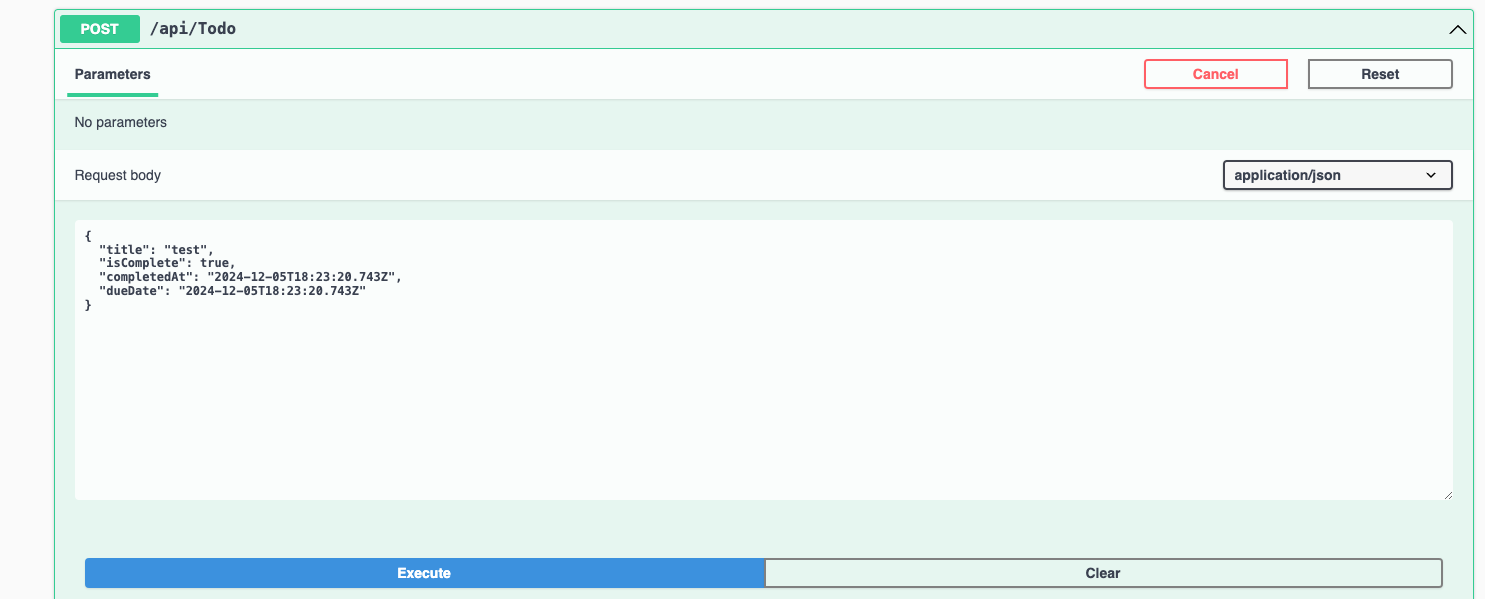

create todo get todos
